Gridline

A lightweight, open-source database GUI for PostgreSQL, MySQL, SQLite, and Redis.
Unlimited connections, tabs, and saved queries — with first-class pg_dump, pg_restore, and DB-to-DB sync.

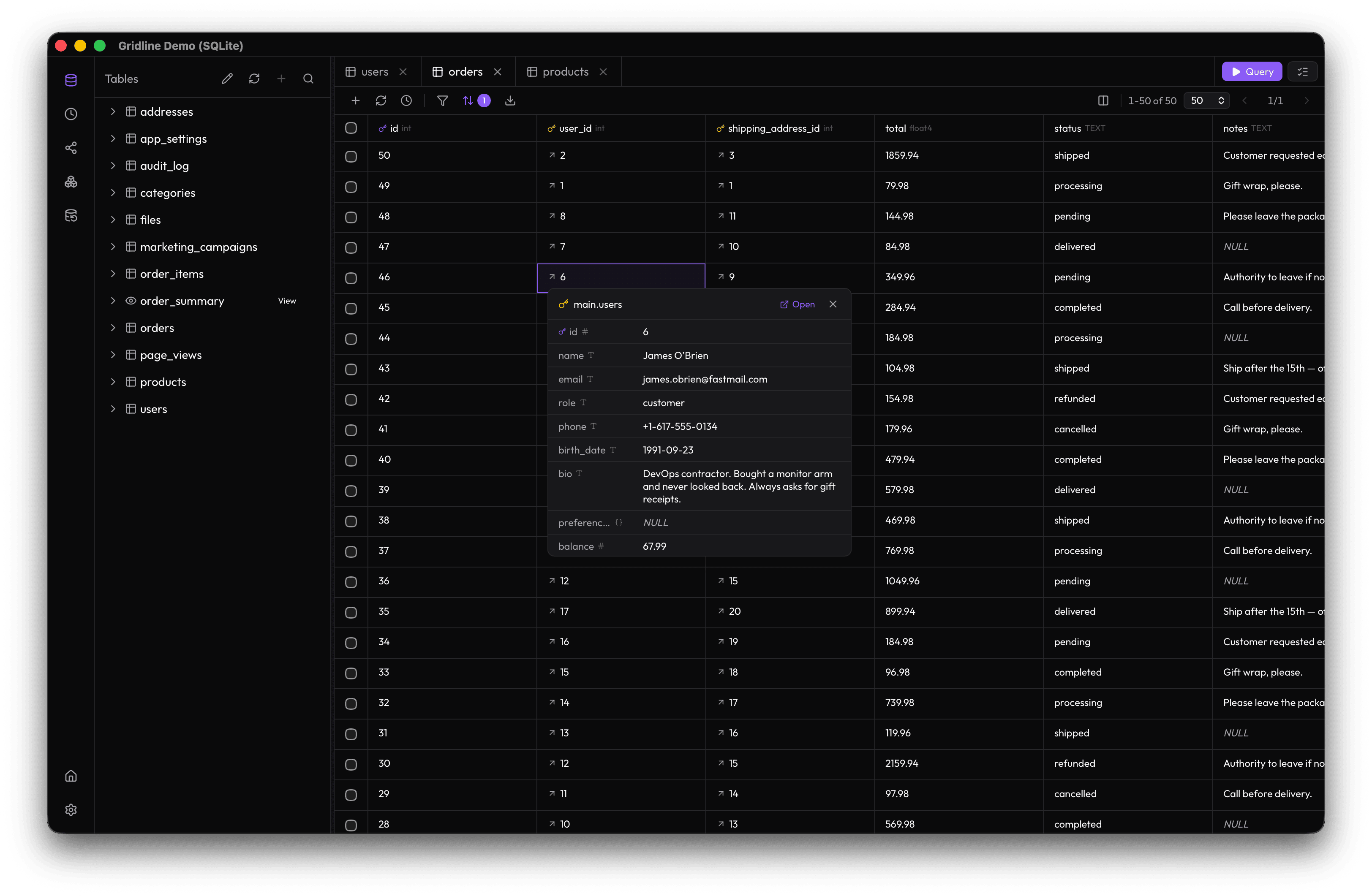

_{Data Grid & FK Preview — browse 50+ real demo orders and inspect related rows in one click.}

---

What is Gridline?

Gridline is a modern, open-source database GUI client built with Tauri 2.0, Rust, and React. It is lightweight by design (~40 MB baseline), powerful by default, and free from the paywalls that limit commercial alternatives.

• No caps on connections, tabs, or saved queries.
• Deep PostgreSQL tooling — visual pg_dump, pg_restore, and DB-to-DB sync.
• Full MySQL + SQLite browsing — connect, browse, query, and edit MySQL and SQLite the same way you do PostgreSQL.
• Full object explorer — not just tables, but functions, triggers, sequences, enums, extensions, materialized views, and procedures.
• Interactive ER diagram — explore relationships visually with crow's-foot cardinality notation.
• Production-safe editing — stage INSERT/UPDATE/DELETE changes, review the generated SQL, then commit all at once.

The app ships with a built-in Gridline Demo (SQLite) database, so you can explore every feature immediately without setting up a server.

---

Who is it for?

Gridline is built for developers and small teams who manage multiple database environments:

• Full-stack developers switching between local, staging, and production databases.
• Platform / DBAs who need pg_dump, pg_restore, and sync tooling in a native UI.
• Teams that want native speed without Electron bloat or seat licenses.

---

Recent Changes

• 2026-08-04: v0.7.0 — revamped the New Connection screen into a two-stage flow with a 6-provider grid (PostgreSQL, MySQL, SQLite, Redis, Supabase, NeonDB; managed presets ship with setup guides + SSL hints) and added full MySQL DB viewer support (connect, browse, query, inline cell editing + changes queue, DDL copy).
• 2026-08-04: Revamped the built-in SQLite demo database with realistic e-commerce data (20 users, 24 products, 50 orders, 100 page views, 500 audit rows) and renamed it to Gridline Demo (SQLite).
• 2026-07-XX: Added inline cell editing with a stage-first changes queue, row-detail drawer, keyboard navigation, and cell-level copy.
• 2026-07-XX: Added visual filter builder with drag-and-drop column palette and type-aware operators.
• 2026-07-XX: Added schema visualizer with React Flow + dagre, crow's-foot notation, and cross-schema FK support.
• 2026-07-XX: Added query history dropdown, saved queries, and a two-pane Queries view.
• 2026-06-XX: Added settings redesign with live theme, accent color, font size, editor options, and tag reorder.
• 2026-06-XX: Added SSH tunneling (password + key auth) and full PostgreSQL TLS runtime for production connections.

See the full history in the roadmap below or the git log.

---

Key Features

Connections & Workspace

• URI auto-fill — paste postgres://, mysql://, sqlite://, or redis:// strings and have all fields populate automatically.
• Provider grid — pick PostgreSQL, MySQL, SQLite, Redis, Supabase, or NeonDB; managed presets surface in-app setup guides and an SSL hint.
• Workspace tree — multi-level folders, color-coded tags, favorites, and recent connections.
• OS keychain storage — passwords and SSH secrets live in macOS Keychain / Linux Secret Service / Windows Credential Manager, never in plaintext.
• SSH tunneling — real ssh2 tunnels with password or key authentication.
• TLS / SSL — full PostgreSQL/MySQL TLS modes plus client-certificate support.
• Connection status — on-demand per-card test with real server version and latency.

Schema Explorer

• Tables, views, and materialized views — column metadata, PK/FK, defaults, nullable flags.
• Functions & procedures — syntax-highlighted source, argument signatures, overload disambiguation.
• Triggers, sequences, enums, extensions — unified Objects view with type switcher.
• Indexes & constraints — per-table index details plus CHECK/UNIQUE constraints beyond PK/FK.
• Schema visualizer — interactive ER diagram with auto-layout, cardinality legend, and collapsible columns.

Data Grid

• Virtualized rows — handles 100k+ rows via @tanstack/react-virtual.
• Server-side filtering & sorting — pushed to SQL WHERE/ORDER BY.
• FK preview — click the ↗ icon on a foreign-key cell to inspect the referenced row or open a filtered tab.
• JSON/JSONB viewer — formatted and raw tabs with copy.
• Inline cell editing — double-click or press Enter; changes stage through the queue before commit.
• Smart editors — enum dropdowns for PG enum columns, searchable FK dropdowns for related rows.
• Visual filter builder — drag-and-drop columns with type-aware operators.
• Export — JSON, CSV, SQL, and Markdown downloads of visible rows.
• Auto-refresh — configurable interval timer.

Query Workbench

• Monaco SQL editor — lazy-loaded, with keywords + table/column autocomplete.
• Custom query execution — arbitrary SQL with destructive-query confirmation.
• Query tabs — unlimited tabs, close with Cmd/Ctrl+W.
• Query history — per-connection, with favorites and pruning.
• Saved queries — name, folder, and manage them in the Queries view.
• Changes queue — stage edits, review generated SQL, revert per change, then commit all.

PostgreSQL Admin Tools

• Visual Backup — pg_dump wrapper with format selector, schema filter, no-owner toggle, real-time progress.
• Visual Restore — pg_restore wrapper with clean toggle and destructive confirmation.
• DB-to-DB Sync — pipe pg_dump → pg_restore between two connections.

---

Screenshots

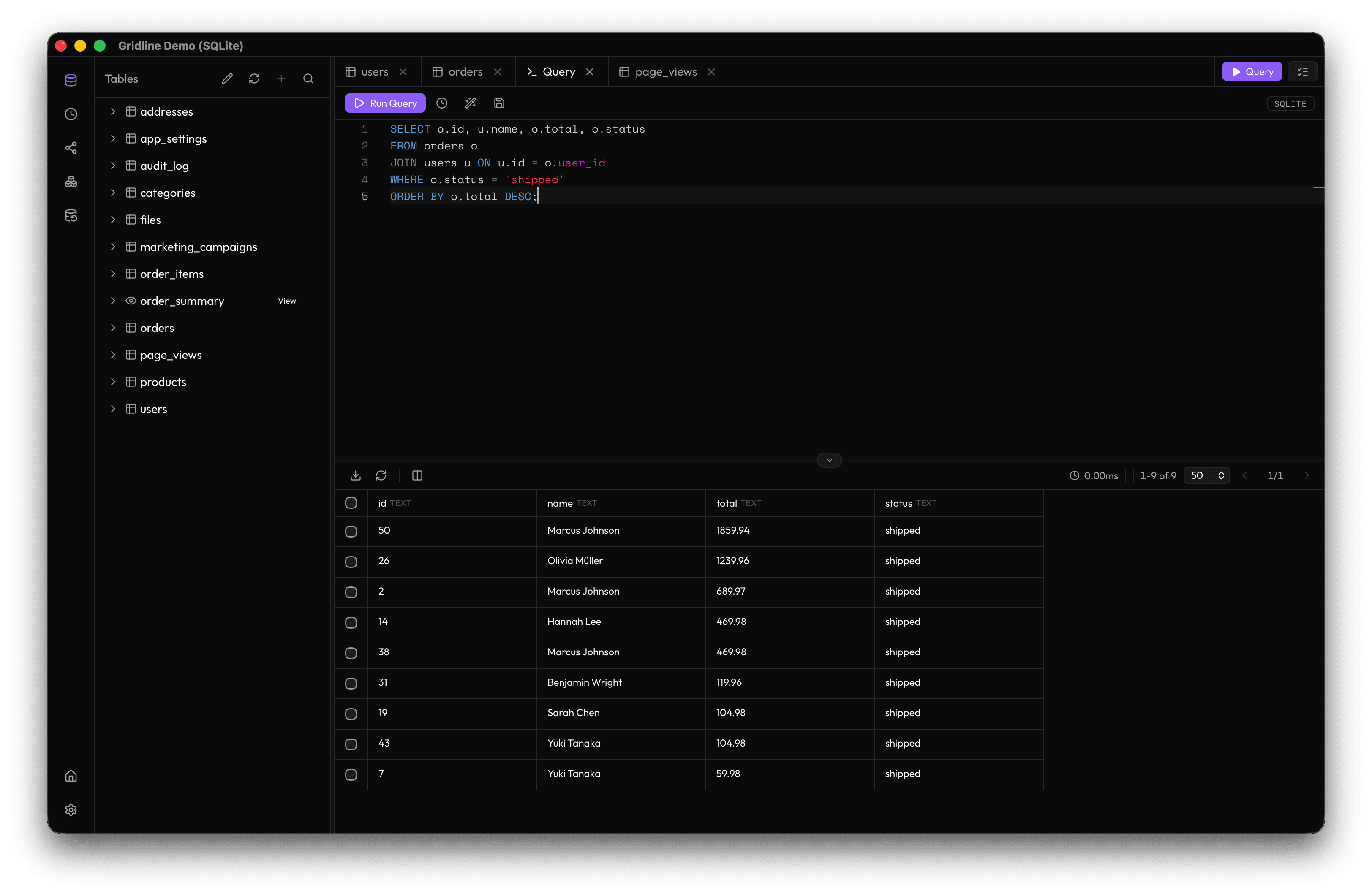

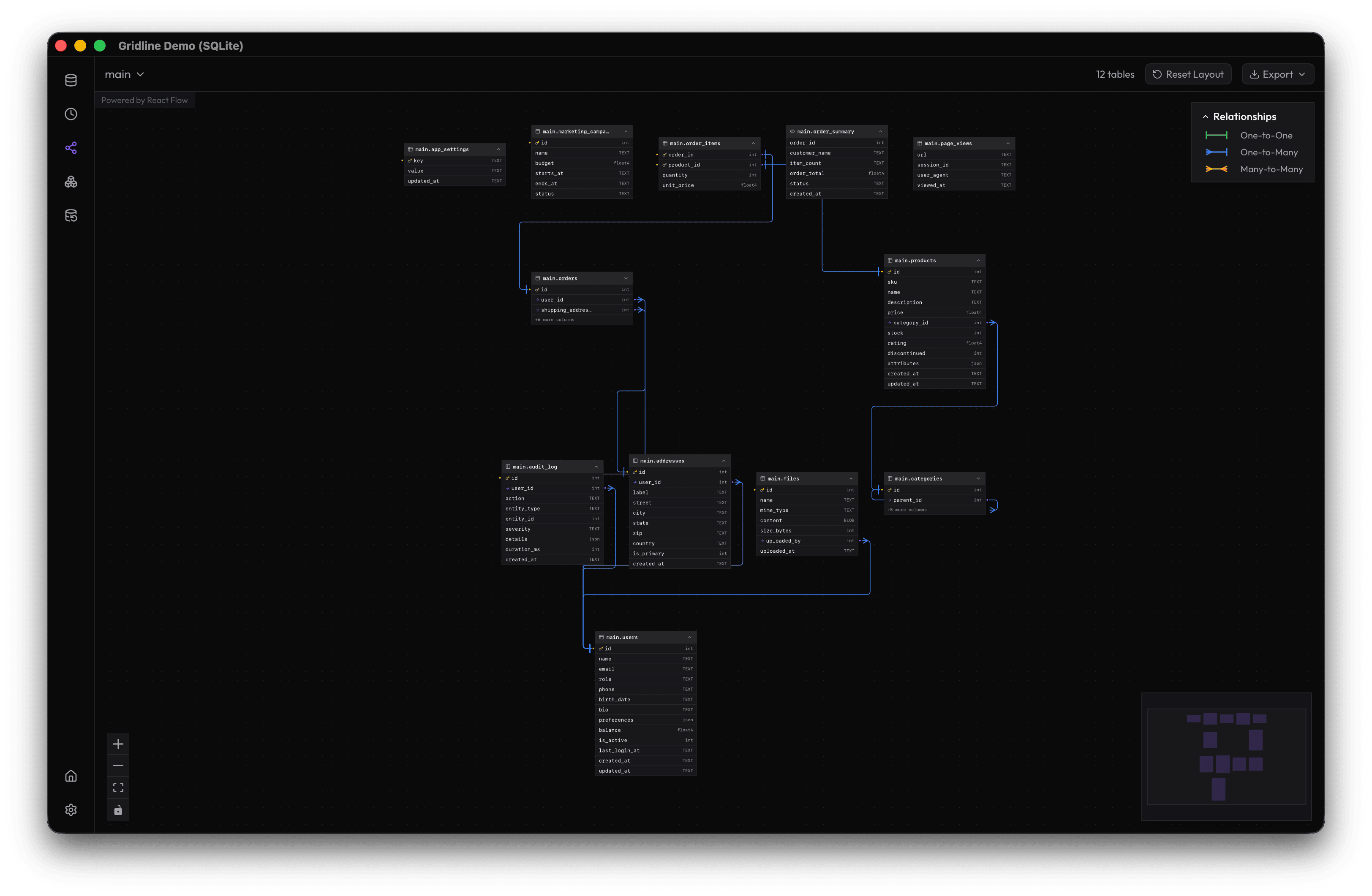

Query Editor	Schema Visualizer

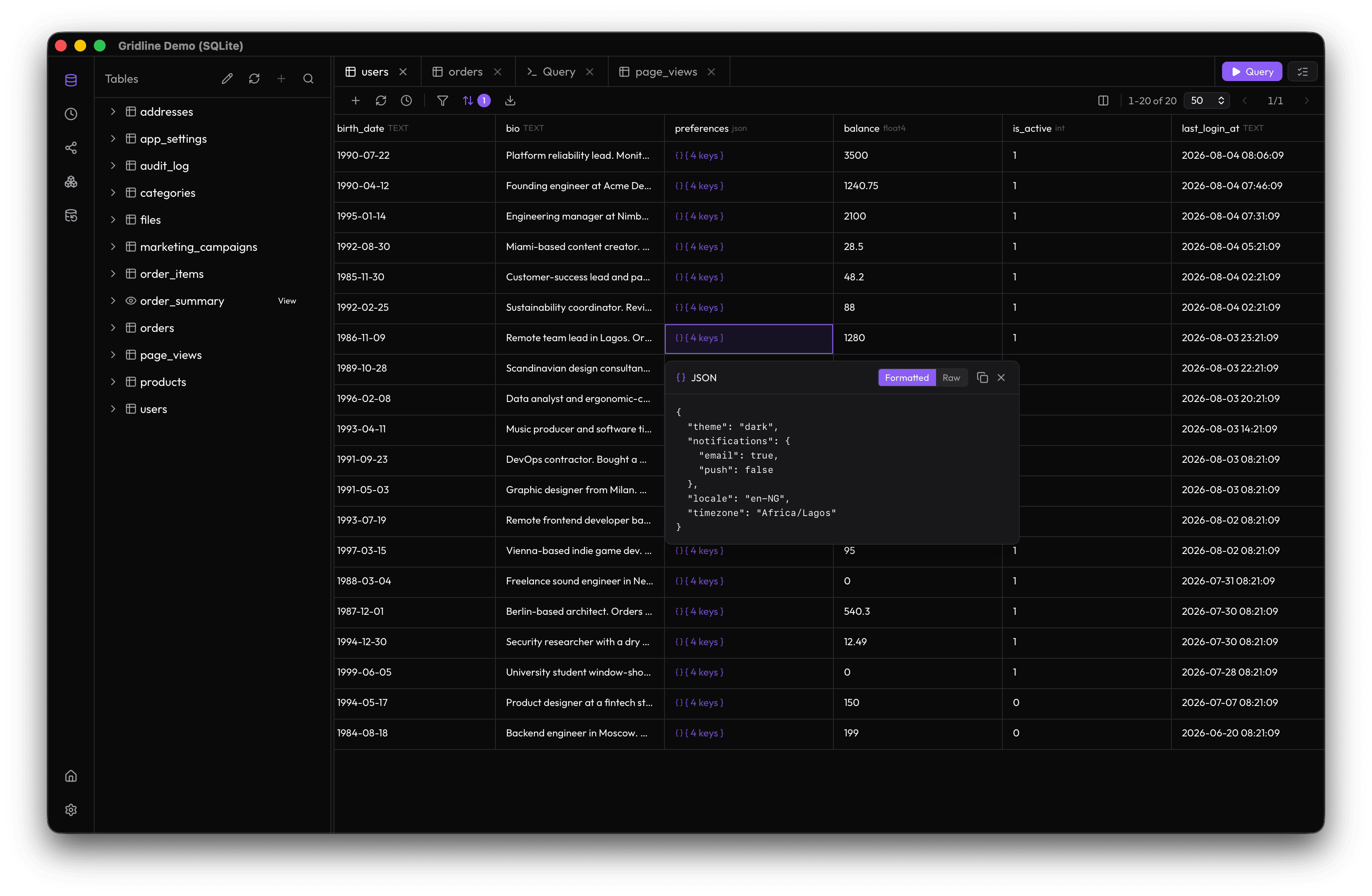

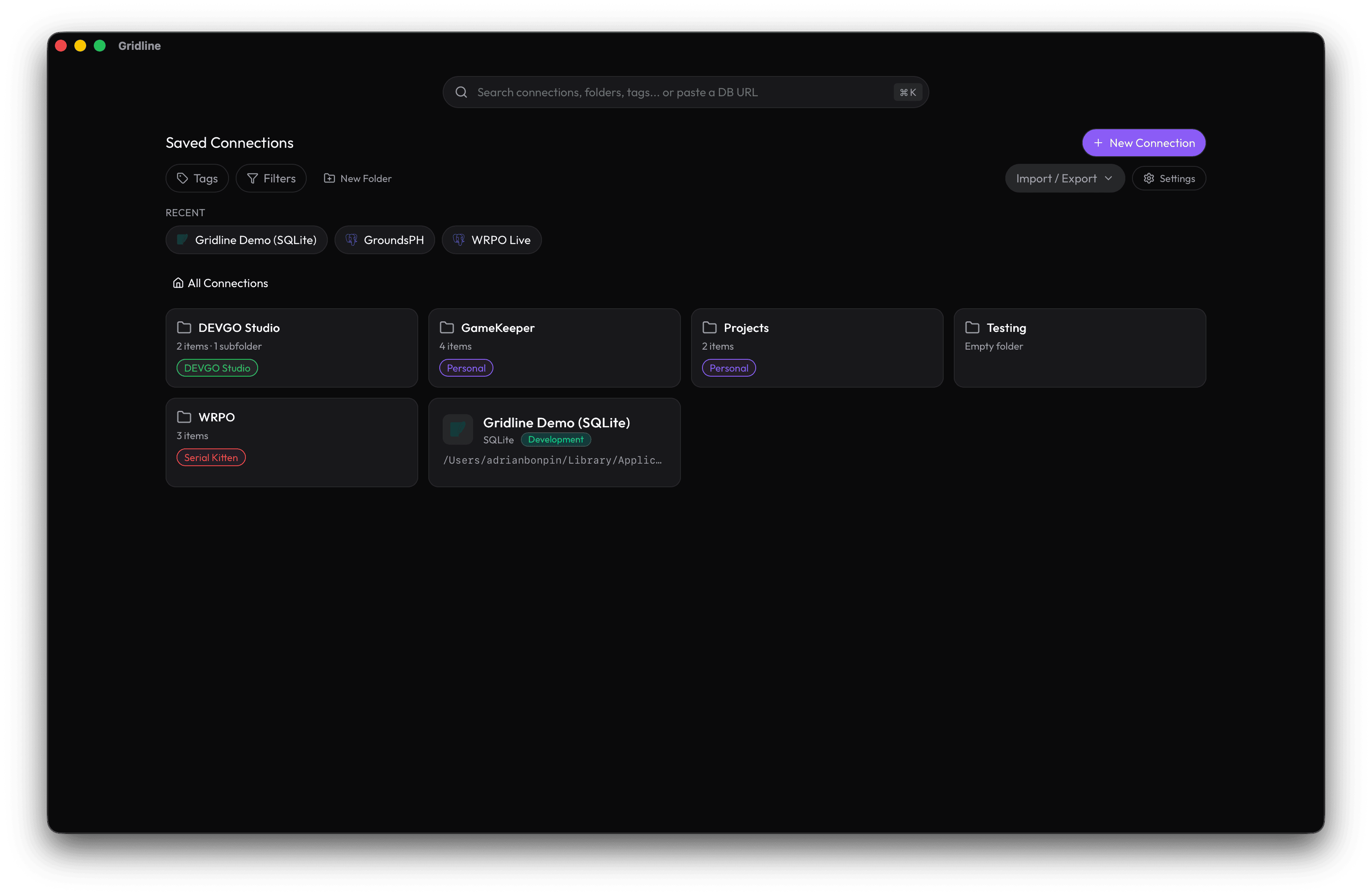

JSON Viewer	Home Screen

---

Why Gridline vs the alternatives?

Capabilities below are fact-checked against each vendor's official docs and pricing (May 2026).

Capability	DB Pro (Free)	Beekeeper (Free)	TablePlus (Free)	Gridline
Open tabs	3	Unlimited	2	Unlimited
Saved connections	2	Unlimited	Unlimited	Unlimited
Saved queries	5	Unlimited	Unlimited	Unlimited
Data export (CSV, JSON, SQL)	✅ (unlimited = paid)	Basic only	✅	JSON, CSV, SQL, Markdown
pg_dump / pg_restore GUI	❌	❌ paid only	✅	First-class UI
DB-to-DB sync	❌	❌	❌	Built-in pipe sync
Object explorer depth	Tables, views, indexes, enums	Tables, views, routines, triggers	Tables, views, functions, procedures	Functions, Triggers, Sequences, Enums, Extensions + full detail
ER diagram / schema visualizer	✅ view-only	❌ paid only	❌	✅ React Flow + dagre
SSH tunneling	❌ paid only	✅	✅	✅ Password + key auth, keychain
OS credential vault	✅	✅	✅	Keychain / Secret Service / Credential Manager
Workspace / folder hierarchy	✅ query/dash folders + tags	✅ (5.7+, local)	❌	Multi-level tree + tags
Changes queue (stage → commit)	❌	✅ Apply/Discard	✅ Safe mode	✅ Queue → Commit All
Desktop shell size	Electron	Electron (~250 MB)	Native	Tauri 2.0 (~40 MB)
Open source	❌	✅ GPLv3	❌	✅ Apache 2.0

Notes: DB Pro is an Electron app (launched Nov 2025) whose marketing copy overclaims — its free plan caps connections/tabs/saved queries (FAQ inconsistently claims "unlimited local connections") and gates data imports + SSH tunneling to paid, though CSV/JSON export does work on the free tier; Beekeeper's free Community edition genuinely offers unlimited tabs/connections/queries but gates backup/restore, file import, multi-table export, ERD, AI, and premium DB connectors behind paid tiers; TablePlus's free tier includes every feature but caps you at 2 open tabs / 2 windows / 2 advanced filters.

---

Tech Stack

Layer	Technology	Role
Desktop shell	Tauri 2.0	Native webview container (~40 MB baseline)
Backend	Rust + tokio	Async runtime, connection pooling, CLI execution
DB drivers	sqlx / tokio-postgres	PostgreSQL via tokio-postgres; MySQL via sqlx; SQLite via rusqlite
CLI integration	std::process::Command	Wraps system pg_dump / pg_restore
Frontend	React 19 + TypeScript	Component-based UI
Styling	Tailwind CSS	Utility-first, dark mode, glassmorphic design
State	Zustand / Jotai	Domain stores
Editor	Monaco Editor	IDE-grade SQL editing
Data grid	TanStack Virtual	100k+ row virtualization
Local store	SQLite via rusqlite	Settings, saved queries, workspace state

---

Getting Started

Download a release

Pre-built installers for macOS, Windows, and Linux are published on the Releases page.

⚠️ Gridline is under active development. Expect rough edges and please open issues when you hit them.

Installers are unsigned (for now)

Gridline is currently distributed unsigned — it doesn't pay for code-signing certificates yet. Your OS will warn you the first time you open it. This is expected — the app is safe, it just hasn't paid the signing fee:

• macOS: right-click the app → Open → Open (or System Settings → Privacy & Security → Open Anyway). Do this once per version.
• Windows: on the SmartScreen prompt, click More info → Run anyway.
• Linux: no warning — install and run normally.

Code signing will be added in the future (Apple Developer Program + a Windows signing cert, e.g. Azure Trusted Signing) — the CI workflow is already wired to pick up the signing secrets automatically the moment they exist, no workflow changes needed.

Which file should I download?

Each release contains one file per platform — you only need the one that matches your computer. (If a newer version is available, swap 0.7.0 for the version shown in the release title.)

Your system	Download this	Notes
macOS Apple Silicon (M1/M2/M3/M4…)	Gridline_0.7.0_aarch64.dmg	aarch64 = Apple's own chip
macOS Intel	Gridline_0.7.0_x64.dmg	x64 = Intel/AMD
Windows (most PCs)	Gridline_0.7.0_x64-setup.exe	The .msi is an alternate installer (for enterprises/IT admins)
Debian / Ubuntu	Gridline_0.7.0_amd64.deb	Install: sudo apt install ./Gridline_0.7.0_amd64.deb
Fedora / RHEL / openSUSE	Gridline-0.7.0-1.x86_64.rpm	Install: sudo dnf install Gridline-0.7.0-1.x86_64.rpm
Any other Linux	Gridline_0.7.0_amd64.AppImage	Works on every distro: chmod +x the file, then double-click it

Not sure if your Mac is Intel or Apple Silicon? Click the Apple menu → About This Mac. If it shows "Apple M1/M2/M3/M4…" download the aarch64 file; if it shows an Intel chip, download x64. Downloading the wrong one won't run.

How releases are made

Cutting a release is one command — CI builds everything. Releases are cut from prod, which is the production branch — only push release tags from prod, never from feature branches:

git checkout prod && git pull
git tag v0.7.0
git push origin v0.7.0

GitHub Actions (.github/workflows/release.yml) builds installers for Apple Silicon, Intel Macs, Windows, and Linux, then opens a draft release on the Releases page — review it and hit Publish release.

Before tagging, make sure the version number is in sync across package.json, src-tauri/Cargo.toml, and src-tauri/tauri.conf.json.

Build from source

# 1. Clone the repository
git clone https://github.com/adrianbonpin/gridline.git
cd gridline

# 2. Install frontend dependencies
bun install

# 3. Run in development mode with hot-reload
bun run tauri dev

# 4. Build for production
bun run tauri build

System requirements

• macOS: 13 (Ventura) or newer
• Windows: 10 or newer
• Linux: Ubuntu 22.04+ or equivalent modern distribution
• RAM: 8 GB recommended
• PostgreSQL client tools: pg_dump and pg_restore are required for admin features

---

Development

# Frontend only (Vite dev server)
bun run dev

# Full Tauri app with hot-reload
bun run tauri dev

# Production build
bun run tauri build

# Rust backend only
cd src-tauri
cargo build

# Run tests
cargo test

Project structure

gridline/
├── src/                    # React frontend
│   ├── components/         # Reusable UI components
│   ├── stores/             # Zustand/Jotai state stores
│   ├── hooks/              # Custom React hooks
│   ├── lib/                # Utilities, types, Tauri bindings
│   ├── App.tsx             # Root component
│   └── main.tsx            # Entry point
├── src-tauri/              # Rust backend
│   ├── src/
│   │   ├── main.rs         # Entry point
│   │   ├── lib.rs          # Tauri command registration
│   │   ├── db/             # Database connection & pooling
│   │   ├── commands/       # Tauri IPC command handlers
│   │   └── models/         # Data structures & serde types
│   ├── Cargo.toml
│   └── tauri.conf.json
├── public/                 # Static assets
├── package.json
├── tsconfig.json
└── vite.config.ts

---

Roadmap

The full plan — in-development (v0.7.0), next-up, queue, and shipped history — lives in ROADMAP.md.

Highlights of what's next:

• Full Object Management — CRUD on functions, triggers, sequences, enums, extensions, and views without the Query tab, plus schema CRUD, global object search, and copy-as-DDL
• Full Redis support — key browser, type-aware value editors, TTL management
• More database types — MariaDB, TimescaleDB, and friends
• Managed DB support — PlanetScale, Turso (Supabase/Neon presets shipped in v0.7.0)
• AI integration (BYOK) — natural-language → SQL, chat, summaries, charts

✅ View the full roadmap →

---

Table of Contents

• What is Gridline?
• Who is it for?
• Recent Changes
• Key Features
• Screenshots
• Why Gridline vs the alternatives?
• Tech Stack
• Getting Started
• Development
• Roadmap
• Contributing
• License

---

Contributing

Contributions, bug reports, and feature ideas are welcome. Gridline is Apache 2.0-licensed and intentionally stays open — no paywalled tiers, no bundled proprietary services.

• Report a bug via the issue template — it walks you through environment details (OS, Gridline version, DB type/version, connection method) so we can reproduce issues quickly. Opening a new issue pre-fills the template automatically.
• Submit a pull request. Keep Tauri commands thin, type IPC boundaries explicitly, and follow the existing Rust/React conventions.

---

License

Apache 2.0 — see LICENSE for details.
