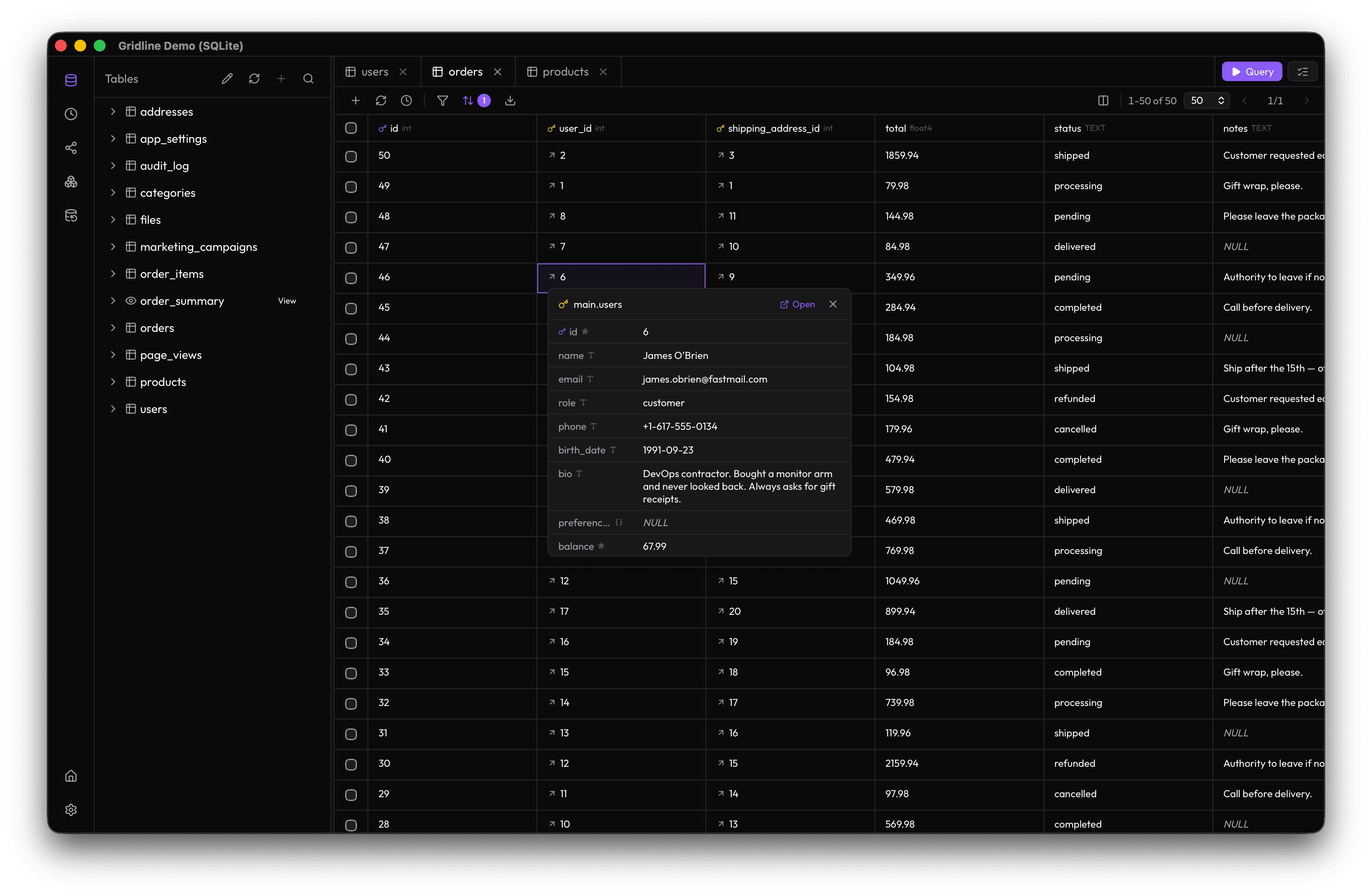

_{Data Grid & FK Preview — browse 50+ real demo orders and inspect related rows in one click.}

Gridline

A lightweight, open-source database GUI for PostgreSQL, MySQL, SQLite, and Redis.
Unlimited connections, tabs, and saved queries — with first-class backup, restore, and DB-to-DB sync for PostgreSQL, MySQL, and SQLite.

---

Download

Grab the installer for your OS from the latest release — the links below point at the current release (v0.7.14):

OS	Architecture	Download
macOS	Apple Silicon (M1/M2/M3/M4…)	Gridline_0.7.14_aarch64.dmg
macOS	Intel	Gridline_0.7.14_x64.dmg
Windows	x64	Gridline_0.7.14_x64-setup.exe
Debian / Ubuntu	amd64	Gridline_0.7.14_amd64.deb
Fedora / RHEL / openSUSE	x86_64	Gridline-0.7.14-1.x86_64.rpm
Other Linux	amd64	Gridline_0.7.14_amd64.AppImage

macOS via Homebrew (recommended for Mac users):

# one-time setup (the tap is hosted on Gitea, not GitHub):
brew tap AdrianBonpin/gridline https://git.ranio.xyz/adrianbonpin/homebrew-gridline.git
brew trust adrianbonpin/gridline

# install / upgrade:
brew install --cask gridline

The cask installs the app directly. The DMGs are Developer-ID signed and notarized, so macOS trusts them on first launch — no xattr or "Open Anyway" step needed.

macOS first launch: Gridline is Developer-ID signed and notarized, so macOS opens it without a Gatekeeper prompt. Not sure if your Mac is Intel or Apple Silicon? See Which file should I download? below.

---

What is Gridline?

Gridline is a modern, open-source database GUI client built with Tauri 2.0, Rust, and React. It is lightweight by design (~40 MB baseline), powerful by default, and free from the paywalls that limit commercial alternatives.

• No caps on connections, tabs, or saved queries.
• Deep PostgreSQL tooling — visual pg_dump, pg_restore, and DB-to-DB sync.
• Backup, restore & sync for every database — PostgreSQL, MySQL (mysqldump / bundled MariaDB clients), and SQLite (.dump), with direct DB-to-DB sync between live connections.
• Excel export — CSV, JSON, SQL, Markdown, and .xlsx from any data grid.
• Cancel long-running queries — a per-connection cancel button instead of waiting it out or killing the app.
• SQLite table editor — the visual Create Table / Edit Table flow now works on SQLite too (INTEGER PRIMARY KEY AUTOINCREMENT instead of serial).
• Full MySQL + SQLite browsing — connect, browse, query, and edit MySQL and SQLite the same way you do PostgreSQL.
• Full object explorer — not just tables, but functions, triggers, sequences, enums, extensions, materialized views, and procedures.
• Interactive ER diagram — explore relationships visually with crow's-foot cardinality notation.
• Production-safe editing — stage INSERT/UPDATE/DELETE changes, review the generated SQL, then commit all at once.

The app ships with a built-in Gridline Demo (SQLite) database, so you can explore every feature immediately without setting up a server.

---

Who is it for?

Gridline is built for developers and small teams who manage multiple database environments:

• Full-stack developers switching between local, staging, and production databases.
• Platform / DBAs who need pg_dump, pg_restore, and sync tooling in a native UI.
• Teams that want native speed without Electron bloat or seat licenses.

---

Recent Changes

View the full changelog

• v0.7.14 — No more repeated macOS keychain prompts: saved connection passwords and SSH secrets are now ACL-pinned to the app's code signature on every save (keychain_acl), so app upgrades never re-trigger the macOS keychain access dialog (users upgrading from pre-signing builds see one final prompt — choose Always Allow). Install via Homebrew: brew tap AdrianBonpin/gridline https://git.ranio.xyz/adrianbonpin/homebrew-gridline.git then brew install --cask gridline; version bump.

• v0.7.13 — macOS is now Developer-ID signed and notarized: the app is properly code-signed with a Developer ID Application certificate and notarized by Apple, so macOS opens it without the Gatekeeper "Open Anyway" prompt or the xattr quarantine workaround. The release script (scripts/release-mac.sh) auto-detects the signing identity from the keychain, notarizes + staples both architectures, and verifies the result before uploading; version bump.

• v0.7.12 — Reliable cell editing for non-text columns: editing a PostgreSQL cell whose type isn't text (integers, booleans, UUIDs, json/jsonb, timestamps, enums, numerics, …) previously failed with a Rust serialization error; edited values are now sent to PostgreSQL in text wire format so the server parses them into the column's own type. Recent connections fix: the Recent strip no longer renders empty on first launch when the connections list hadn't loaded yet. Full CI release pipeline for Windows: self-hosted Windows runner builds the .exe/.msi installers (bundled pg_dump/pg_restore/psql + MariaDB clients) and uploads them to the release alongside Linux; version bump.

• v0.7.10 — Copy connection URL: from a connection card's ⋮ menu, copy the connection string for use in env vars / other tools — Copy connection URL (includes the password, fetched from the OS keychain on demand) and Copy connection URL (no password) (safe to share). Builds postgresql:// / mysql:// / sqlite:// / redis:// strings with percent-encoded credentials and the PG sslmode appended; version bump.

• v0.7.9 — macOS install/launch fixes: the app's local store now opens under the OS app-data directory (a cwd-relative gridline.db made Finder-launched copies silently exit with a Rust panic before the UI started); macOS bundles are ad-hoc signed at build time (signingIdentity "-"), replacing the Xcode linker-only signature that macOS treated as unsigned ("damaged and can't be opened", silent Finder refusals) — users now get a standard one-time Gatekeeper prompt (see the install notes, incl. the xattr workaround); OpenSSL is vendored into the ssh2 build so the release no longer depends on a Homebrew OpenSSL path; version bump.

• v0.7.8 — SQLite .dump backup/restore plus backup / restore / sync for MySQL & SQLite (mysqldump-based, system-first); Excel (.xlsx) export in the grid toolbar alongside CSV/JSON/SQL/Markdown; cancel long-running queries per connection; settings export/import (JSON); Windows/Linux title bar fix (macOS-only overlay drag strip); SQLite table editor (Create/Edit Table with SQLite-aware type mapping); version bump.

• v0.7.7 — PostgreSQL roles & grants management (create/edit/drop roles with attributes + a per-role privilege explorer across tables/sequences/routines/schemas/databases — collapsible grouped lists with GRANT/REVOKE staging) and table maintenance (VACUUM / ANALYZE / REINDEX from the table menu). Create Table / Edit Table visual editor: columns grid with type dropdowns and drag-to-reorder, single + composite primary keys, column-diff staging (ADD / DROP / RENAME COLUMN, ALTER TYPE, SET | DROP DEFAULT, SET | DROP NOT NULL — one statement per queue item), atomic column-reorder table rebuild (single transaction, preserves constraints/indexes/FKs/grants/sequences, fail-closed for triggers/RLS/inheritance/partitioning). FK management — multi-column composer with cross-schema references and ON DELETE/UPDATE, inlined into CREATE TABLE; table options (tablespace, row-level security); changes queue auto-refreshes the object tree after schema-modifying commits; version bump.

• v0.7.6 — Full PostgreSQL object management (create/edit/drop for enums, functions, procedures, triggers, sequences, extensions, views, materialized views, indexes, constraints) staged through the changes queue with generated-SQL previews; Enable Keychain toggle wired (default ON, opt-out; OFF = session-only); Objects view upgraded to the shared tabbed workspace (object detail tabs with per-type icons, inline manual query + changes queue); ⌘K object search fixes; version bump.

• 2026-08-05: v0.7.5 — bundled pg_dump/pg_restore/psql (system-first, bundled fallback) so admin features work with no separate install; schema CRUD (create/rename/drop with CASCADE + dependency warning); Cmd+K object search (current schema, all object types); copy-as-DDL for every browsable object type; pg_depend object-dependency view shown before destructive drops.

• 2026-08-04: v0.7.5 — revamped the New Connection screen into a two-stage flow with a 6-provider grid (PostgreSQL, MySQL, SQLite, Redis, Supabase, NeonDB; managed presets ship with setup guides + SSL hints) and added full MySQL DB viewer support (connect, browse, query, inline cell editing + changes queue, DDL copy).

• 2026-08-04: Revamped the built-in SQLite demo database with realistic e-commerce data (20 users, 24 products, 50 orders, 100 page views, 500 audit rows) and renamed it to Gridline Demo (SQLite).

• 2026-07-XX: Added inline cell editing with a stage-first changes queue, row-detail drawer, keyboard navigation, and cell-level copy.

• 2026-07-XX: Added visual filter builder with drag-and-drop column palette and type-aware operators.

• 2026-07-XX: Added schema visualizer with React Flow + dagre, crow's-foot notation, and cross-schema FK support.

• 2026-07-XX: Added query history dropdown, saved queries, and a two-pane Queries view.

• 2026-06-XX: Added settings redesign with live theme, accent color, font size, editor options, and tag reorder.

• 2026-06-XX: Added SSH tunneling (password + key auth) and full PostgreSQL TLS runtime for production connections.

See the full history in the roadmap below or the git log.

---

Key Features

Connections & Workspace

Show features

• URI auto-fill — paste postgres://, mysql://, sqlite://, or redis:// strings and have all fields populate automatically.
• Provider grid — pick PostgreSQL, MySQL, SQLite, Redis, Supabase, or NeonDB; managed presets surface in-app setup guides and an SSL hint.
• Workspace tree — multi-level folders, color-coded tags, favorites, and recent connections.
• OS keychain storage — passwords and SSH secrets live in macOS Keychain / Linux Secret Service / Windows Credential Manager, never in plaintext.
• SSH tunneling — real ssh2 tunnels with password or key authentication.
• TLS / SSL — full PostgreSQL/MySQL TLS modes plus client-certificate support.
• Connection status — on-demand per-card test with real server version and latency.

Schema Explorer

Show features

• Tables, views, and materialized views — column metadata, PK/FK, defaults, nullable flags.
• Functions & procedures — syntax-highlighted source, argument signatures, overload disambiguation.
• Triggers, sequences, enums, extensions — unified Objects view with type switcher.
• Indexes & constraints — per-table index details plus CHECK/UNIQUE constraints beyond PK/FK.
• Schema CRUD — create/rename/drop schemas from the object tree, with typed-name + dependency warning on CASCADE drops.
• Global object search — ⌘K, current schema, all object types; results open a table tab or jump to the Objects view.
• Copy as DDL — CREATE DDL for every browsable object type.
• Object dependencies — pg_depend "what depends on this?" view before destructive drops.
• Schema visualizer — interactive ER diagram with auto-layout, cardinality legend, and collapsible columns.
• Table creator & editor — build or alter tables from a visual columns grid: type dropdowns, drag-to-reorder, single/composite primary keys, defaults, nullability — with a live SQL preview and column-diff staging.
• FK management — create/edit/drop foreign keys with cross-schema references and ON DELETE/UPDATE actions, inlined into CREATE TABLE.
• Table options — tablespace and row-level security per table.

Data Grid

Show features

• Virtualized rows — handles 100k+ rows via @tanstack/react-virtual.
• Server-side filtering & sorting — pushed to SQL WHERE/ORDER BY.
• FK preview — click the ↗ icon on a foreign-key cell to inspect the referenced row or open a filtered tab.
• JSON/JSONB viewer — formatted and raw tabs with copy.
• Inline cell editing — double-click or press Enter; changes stage through the queue before commit.
• Smart editors — enum dropdowns for PG enum columns, searchable FK dropdowns for related rows.
• Visual filter builder — drag-and-drop columns with type-aware operators.
• Export — JSON, CSV, SQL, and Markdown downloads of visible rows.
• Auto-refresh — configurable interval timer.

Query Workbench

Show features

• Monaco SQL editor — lazy-loaded, with keywords + table/column autocomplete.
• Custom query execution — arbitrary SQL with destructive-query confirmation.
• Query tabs — unlimited tabs, close with Cmd/Ctrl+W.
• Query history — per-connection, with favorites and pruning.
• Saved queries — name, folder, and manage them in the Queries view.
• Changes queue — stage edits, review generated SQL, revert per change, then commit all.

PostgreSQL Admin Tools

Show features

• Visual Backup — pg_dump (format selector, schema filter, no-owner), mysqldump, and SQLite .dump wrappers with real-time progress.
• Visual Restore — pg_restore / mysql / SQLite restore with clean toggle and destructive confirmation.
• DB-to-DB Sync — pipe dump → restore between two live connections (PostgreSQL, MySQL, and SQLite).
• Bundled client tools — pg_dump/pg_restore/psql plus mariadb-dump/mariadb ship with the app; system tools are preferred when present, bundled tools are the fallback.
• Roles & grants — create/edit/drop roles with attributes; a per-role privilege explorer grouped by object class (tables, sequences, routines, schemas, databases) with collapsible lists and GRANT/REVOKE staging.
• Table maintenance — VACUUM, ANALYZE, and REINDEX from the table menu.
• Excel export — hand-rolled .xlsx writer (inline strings, formula-injection safe) alongside CSV/JSON/SQL/Markdown in the grid toolbar and table menu.
• Cancel long-running queries — PG cancel request / MySQL KILL QUERY / SQLite interrupt, wired to the toolbar Cancel button.
• Settings export / import — share theme, accent, editor options, page sizes, and shortcuts across machines (JSON).

---

Screenshots

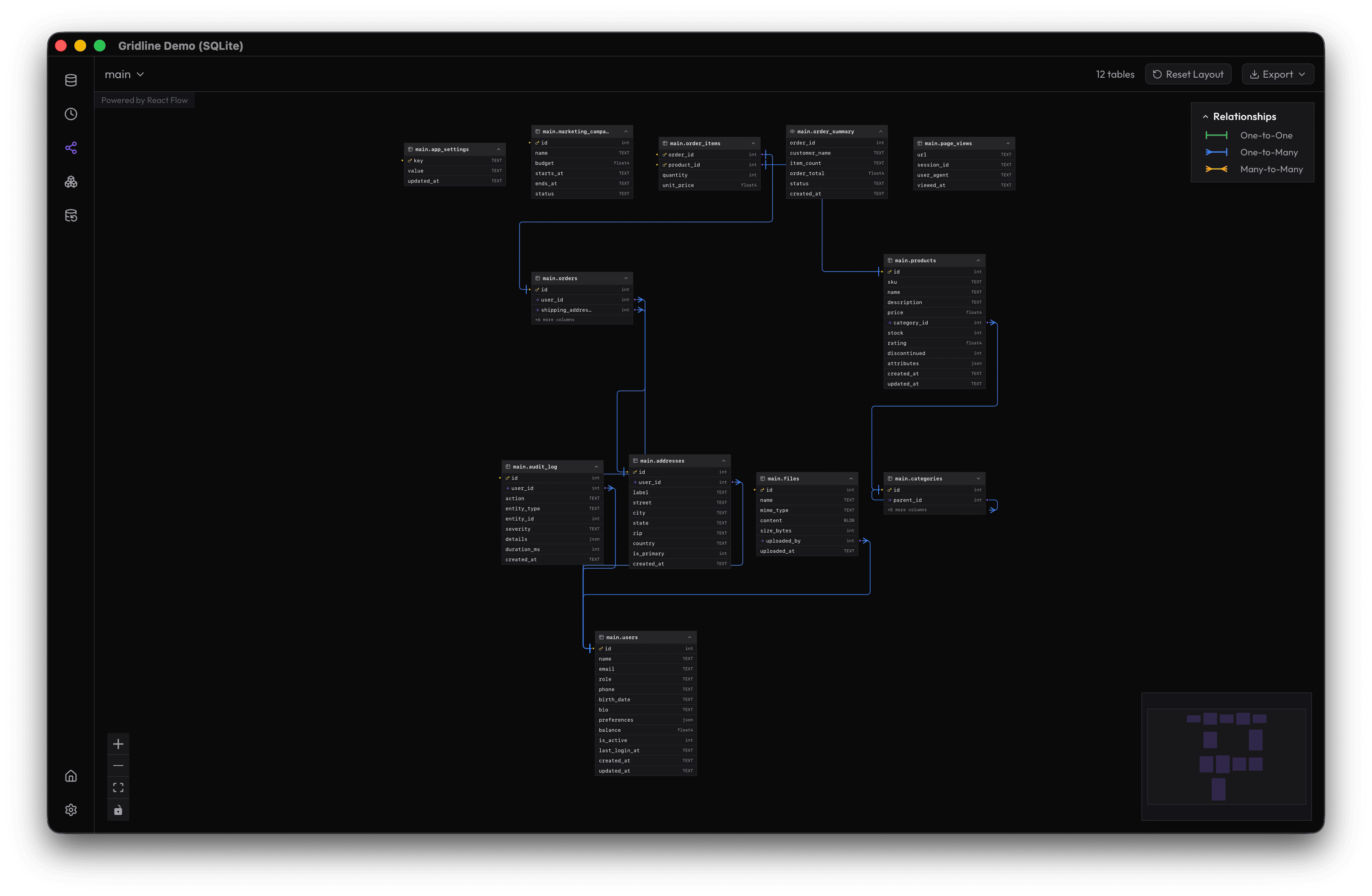

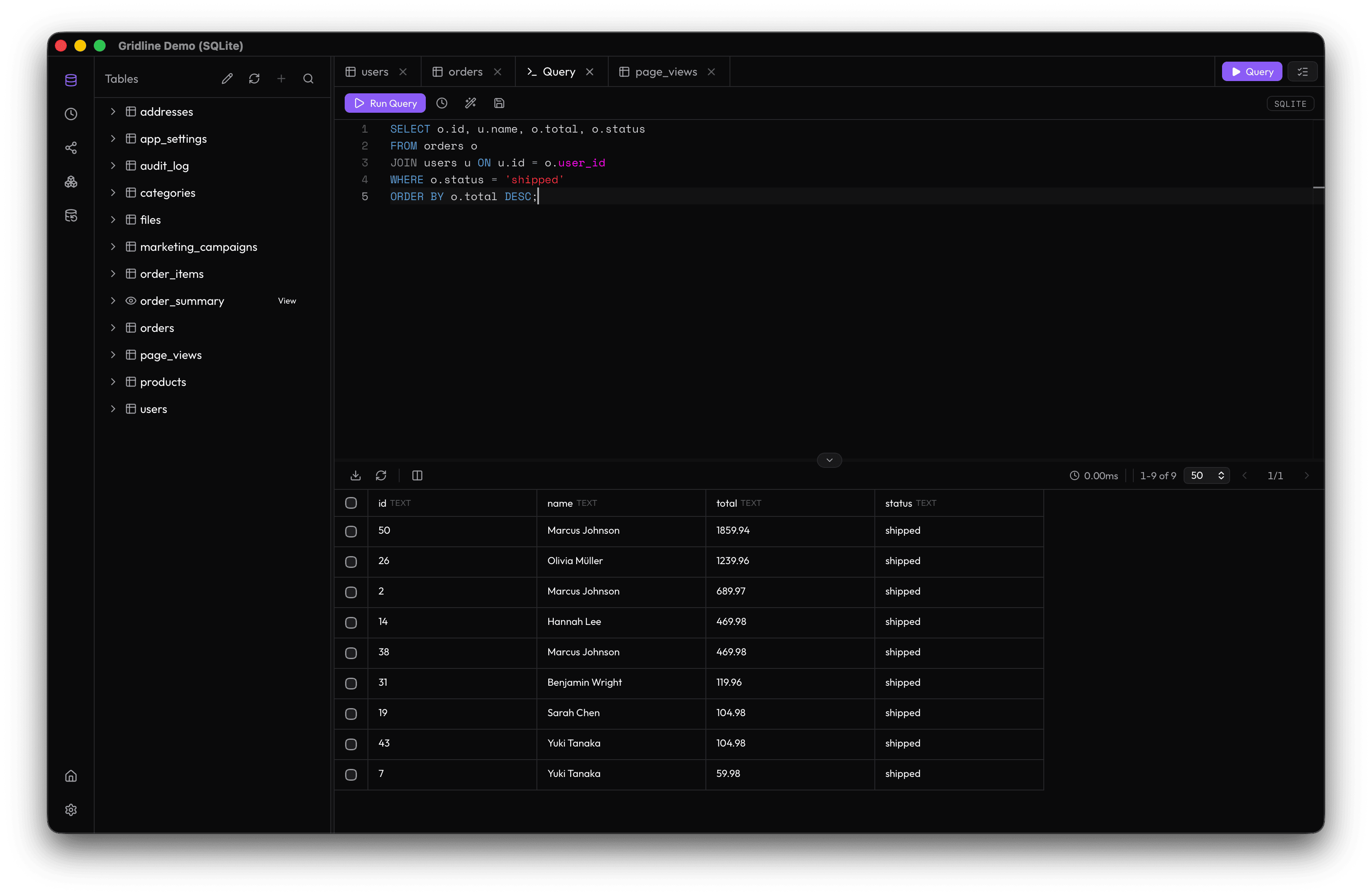

Query Editor	Schema Visualizer

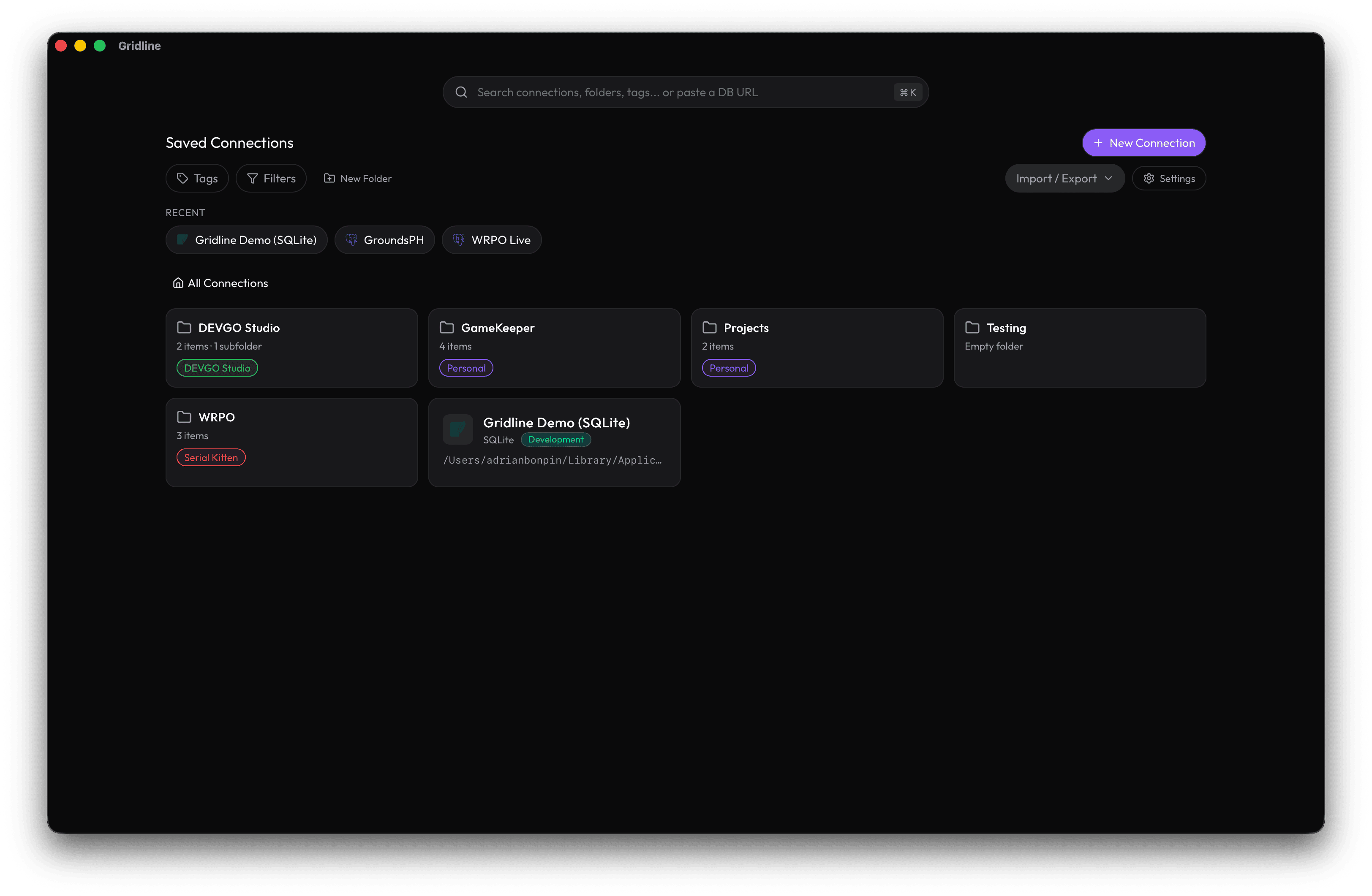

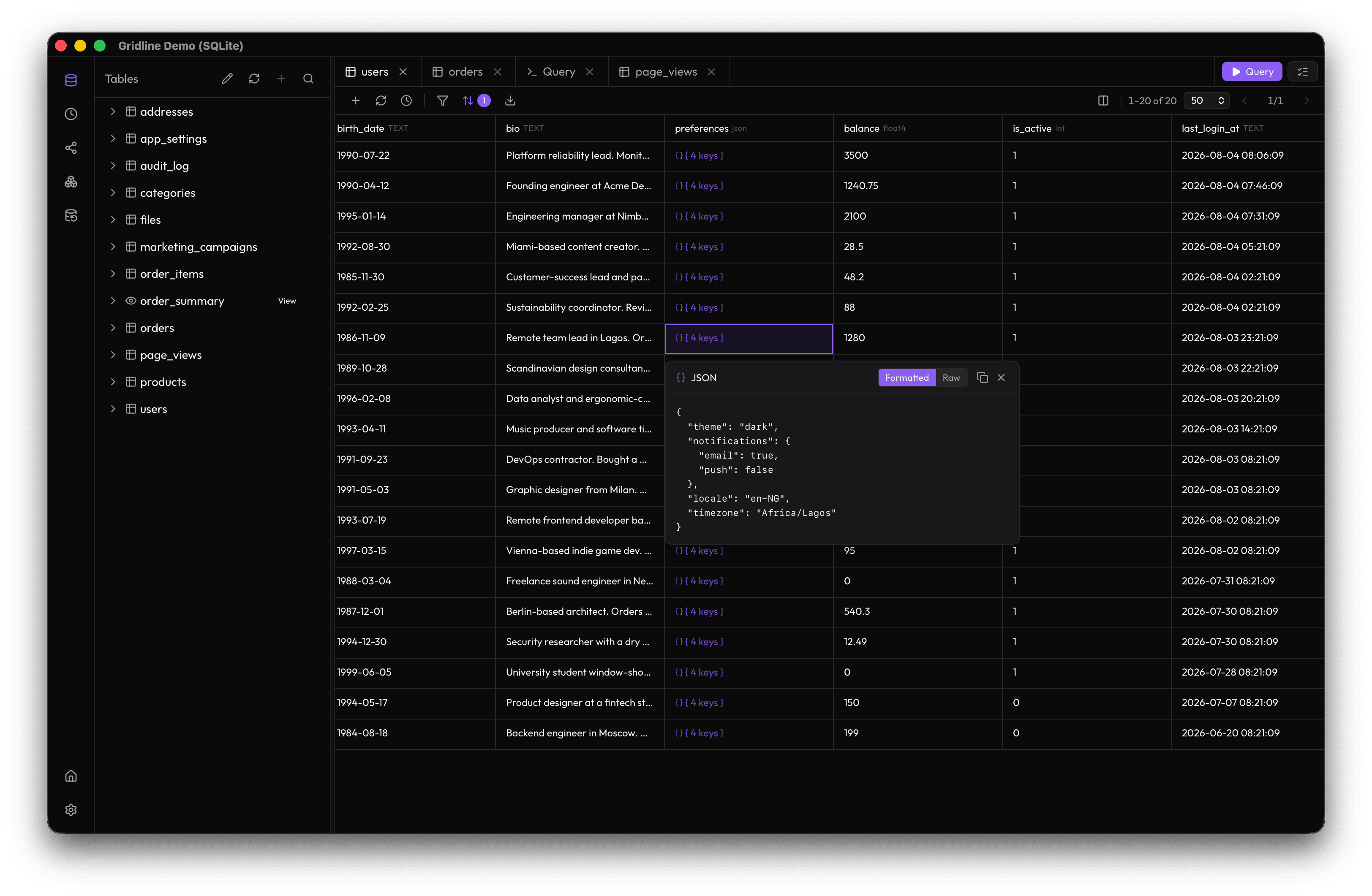

JSON Viewer	Home Screen

---

Why Gridline vs the alternatives?

Capabilities below are fact-checked against each vendor's official docs and pricing (May 2026).

Capability	DB Pro (Free)	Beekeeper (Free)	TablePlus (Free)	Gridline
Open tabs	3	Unlimited	2	Unlimited
Saved connections	2	Unlimited	Unlimited	Unlimited
Saved queries	5	Unlimited	Unlimited	Unlimited
Data export (CSV, JSON, SQL)	✅ (unlimited = paid)	Basic only	✅	JSON, CSV, SQL, Markdown
pg_dump / pg_restore GUI	❌	❌ paid only	✅	First-class UI
DB-to-DB sync	❌	❌	❌	Built-in pipe sync
Object explorer depth	Tables, views, indexes, enums	Tables, views, routines, triggers	Tables, views, functions, procedures	Functions, Triggers, Sequences, Enums, Extensions + full detail
ER diagram / schema visualizer	✅ view-only	❌ paid only	❌	✅ React Flow + dagre
SSH tunneling	❌ paid only	✅	✅	✅ Password + key auth, keychain
OS credential vault	✅	✅	✅	Keychain / Secret Service / Credential Manager
Workspace / folder hierarchy	✅ query/dash folders + tags	✅ (5.7+, local)	❌	Multi-level tree + tags
Changes queue (stage → commit)	❌	✅ Apply/Discard	✅ Safe mode	✅ Queue → Commit All
Desktop shell size	Electron	Electron (~250 MB)	Native	Tauri 2.0 (~40 MB)
Open source	❌	✅ GPLv3	❌	✅ Apache 2.0

Notes: DB Pro is an Electron app (launched Nov 2025) whose marketing copy overclaims — its free plan caps connections/tabs/saved queries (FAQ inconsistently claims "unlimited local connections") and gates data imports + SSH tunneling to paid, though CSV/JSON export does work on the free tier; Beekeeper's free Community edition genuinely offers unlimited tabs/connections/queries but gates backup/restore, file import, multi-table export, ERD, AI, and premium DB connectors behind paid tiers; TablePlus's free tier includes every feature but caps you at 2 open tabs / 2 windows / 2 advanced filters.

---

Tech Stack

Layer	Technology	Role
Desktop shell	Tauri 2.0	Native webview container (~40 MB baseline)
Backend	Rust + tokio	Async runtime, connection pooling, CLI execution
DB drivers	sqlx / tokio-postgres	PostgreSQL via tokio-postgres; MySQL via sqlx; SQLite via rusqlite
CLI integration	std::process::Command	Wraps bundled or system pg_dump / pg_restore
Frontend	React 19 + TypeScript	Component-based UI
Styling	Tailwind CSS	Utility-first, dark mode, glassmorphic design
State	Zustand / Jotai	Domain stores
Editor	Monaco Editor	IDE-grade SQL editing
Data grid	TanStack Virtual	100k+ row virtualization
Local store	SQLite via rusqlite	Settings, saved queries, workspace state

---

Getting Started

Download a release

Pre-built installers for macOS, Windows, and Linux are published on the Releases page.

⚠️ Gridline is under active development. Expect rough edges and please open issues when you hit them.

macOS signing & notarization

Gridline's macOS builds are Developer-ID signed and notarized, so macOS opens them without a Gatekeeper prompt. This is configured on the machine that runs scripts/release-mac.sh (macOS is built manually, not in CI).

One-time setup (only the repo owner needs to do this):

1. Create a Developer ID Application certificate — developer.apple.com → Certificates, Identifiers & Profiles → + → Developer ID Application. Generate a Certificate Signing Request from Keychain Access (Certificate Assistant → Request a Certificate From a Certificate Authority), upload it, download the .cer, and double-click to install into your login keychain. Verify with security find-identity -v -p codesigning.

2. Create an App Store Connect API key for notarization — appstoreconnect.apple.com → Users and Access → Integrations → App Store Connect API → + (name it, Developer access). Download the .p8 (shown once) and note the Key ID and Issuer ID.

3. Save the notarization credentials to ~/.config/gridline/notarize.env (never committed):

   APPLE_API_KEY=<Key ID>
   APPLE_API_ISSUER=<Issuer ID>
   APPLE_API_KEY_PATH=/absolute/path/to/AuthKey_<KeyID>.p8


   (Alternatively, drop the .p8 at ~/.appstoreconnect/private_keys/AuthKey_<KeyID>.p8 and omit APPLE_API_KEY_PATH.)

scripts/release-mac.sh auto-detects the Developer ID identity from your keychain, signs both architectures, notarizes + staples them, and verifies the result before uploading. If the certificate or credentials are missing it fails with instructions (set GRIDLINE_SKIP_NOTARIZE=1 to build signed-but-unnotarized for testing only).

Windows still shows a SmartScreen prompt (no Windows signing cert yet); Linux installs without a warning.

Which file should I download?

Each release contains one file per platform — you only need the one that matches your computer. The links below point at the current release (v0.7.14):

Your system	Download this	Notes
macOS Apple Silicon (M1/M2/M3/M4…)	Gridline_0.7.14_aarch64.dmg	aarch64 = Apple's own chip
macOS Intel	Gridline_0.7.14_x64.dmg	x64 = Intel/AMD
Windows (most PCs)	Gridline_0.7.14_x64-setup.exe	The .msi is an alternate installer (for enterprises/IT admins)
Debian / Ubuntu	Gridline_0.7.14_amd64.deb	Install: sudo apt install ./Gridline_0.7.14_amd64.deb
Fedora / RHEL / openSUSE	Gridline-0.7.14-1.x86_64.rpm	Install: sudo dnf install Gridline-0.7.14-1.x86_64.rpm
Any other Linux	Gridline_0.7.14_amd64.AppImage	Works on every distro: chmod +x the file, then double-click it

Not sure if your Mac is Intel or Apple Silicon? Click the Apple menu → About This Mac. If it shows "Apple M1/M2/M3/M4…" download the aarch64 file; if it shows an Intel chip, download x64. Downloading the wrong one won't run.

How releases are made

Cutting a release is one command — CI builds everything. Releases are cut from prod, which is the production branch — only push release tags from prod, never from feature branches:

git checkout prod && git pull
git tag v0.7.14
git push origin v0.7.14

Gitea Actions (.gitea/workflows/release.yml) builds the Linux and Windows installers on the self-hosted runners, then opens a draft release on the Releases page. macOS is built manually on the dev Mac and its DMGs uploaded to the same release via scripts/release-mac.sh. Review the draft and hit Publish release.

Before tagging, make sure the version number is in sync across desktop/package.json, desktop/src-tauri/Cargo.toml, and desktop/src-tauri/tauri.conf.json, and update the README download tables (Download + Which file should I download?) to the new version's asset names.

Build from source

# 1. Clone the repository
git clone https://git.ranio.xyz/adrianbonpin/gridline.git
cd gridline

# 2. Install all workspace dependencies
bun install

# 3. Run in development mode with hot-reload (from desktop/)
cd desktop
bun run tauri dev

# 4. Build for production
bun run tauri build

System requirements

• macOS: 13 (Ventura) or newer
• Windows: 10 or newer
• Linux: Ubuntu 22.04+ or equivalent modern distribution
• RAM: 8 GB recommended
• PostgreSQL client tools: pg_dump/pg_restore/psql are bundled with Gridline — no separate install required for backup/restore/sync. (System tools, if installed, are preferred.)

---

Development

# Install all workspace dependencies (from the repo root)
bun install

# Full Tauri app with hot-reload (from desktop/)
cd desktop
bun run tauri dev

# Production build
bun run tauri build

# Frontend only (Vite dev server)
bun run dev

# Rust backend only
cd desktop/src-tauri
cargo build

# Run tests
cargo test

Project structure

gridline/
├── package.json            # Bun workspace root (desktop + www)
├── desktop/                # Tauri desktop app (React + Rust)
│   ├── src/                # React frontend
│   │   ├── components/     # Reusable UI components
│   │   ├── stores/         # Zustand/Jotai state stores
│   │   ├── hooks/          # Custom React hooks
│   │   ├── lib/            # Utilities, types, Tauri bindings
│   │   ├── App.tsx         # Root component
│   │   └── main.tsx        # Entry point
│   ├── src-tauri/          # Rust backend
│   │   ├── src/
│   │   │   ├── main.rs     # Entry point
│   │   │   ├── lib.rs      # Tauri command registration
│   │   │   ├── db/         # Database connection & pooling
│   │   │   ├── commands/   # Tauri IPC command handlers
│   │   │   └── models/     # Data structures & serde types
│   │   ├── Cargo.toml
│   │   └── tauri.conf.json
│   ├── package.json
│   ├── tsconfig.json
│   └── vite.config.ts
└── www/                    # Website (Astro + Tailwind)

---

Roadmap

The full plan — next-up, queue, and shipped history — lives in ROADMAP.md.

Highlights of what's next:

• Admin follow-up — PostgreSQL users/roles + grants management, and table maintenance actions (VACUUM / ANALYZE / REINDEX)
• Full Redis support — key browser, type-aware value editors, TTL management
• More database types — MariaDB, TimescaleDB, and friends
• Managed DB support — PlanetScale, Turso (Supabase/Neon presets shipped in v0.7.0)
• AI integration (BYOK) — natural-language → SQL, chat, summaries, charts

✅ View the full roadmap →

---

Table of Contents

• Download
• What is Gridline?
• Who is it for?
• Recent Changes
• Key Features
• Screenshots
• Why Gridline vs the alternatives?
• Tech Stack
• Getting Started
• Development
• Roadmap
• Contributing
• License

---

Contributing

Contributions, bug reports, and feature ideas are welcome. Gridline is Apache 2.0-licensed and intentionally stays open — no paywalled tiers, no bundled proprietary services.

• Open an issue via the template chooser — pick Bug report (with an environment table so we can reproduce issues quickly), Feature request, or Improvement (UX polish for existing features). New issues are auto-assigned to the maintainer.
• Submit a pull request. Keep Tauri commands thin, type IPC boundaries explicitly, and follow the existing Rust/React conventions.

---

License

Apache 2.0 — see LICENSE for details.
